Review Original 100% New HW HG8010H EPON 1GE ONU ONT OLT With1 port EPON apply to FTTH mode no box Free shipping

Posted on



Special Chance of Original 100% New HW HG8010H EPON 1GE ONU ONT OLT With1 port EPON apply to FTTH mode no box Free shipping

If You want to buy for , then Original 100% New HW HG8010H EPON 1GE ONU ONT OLT With1 port EPON apply to FTTH mode no box Free shipping may be make you love

Buy Original 100% New HW HG8010H EPON 1GE ONU ONT OLT With1 port EPON apply to FTTH mode no box Free shipping Right Here and Right Now and You will save  USD 26.4 or 20%%, Because price is will changed at any time without notice, or stock may be run out, If You Buy Now You Just Pay For  105.60, not in Reguler Price at  132.00. Yap! This is I mean you will Save  20% % /  USD 26.4

Addition Information of Original 100% New HW HG8010H EPON 1GE ONU ONT OLT With1 port EPON apply to FTTH mode no box Free shipping

Product UD (PID) : 1005003234242773
Product Rank : [RANK] at Keyword
Reguler Price :  132.00
Discount Price : 105.60
Category ID : 509
Category Name : Phones & Telecommunications
Saving   :  USD 26.4
Discount : 20%
Rank : [RANK]  From
Last Stock Available : (When this Article was written).

NOTICE:

1.Buyer is responsible for the customs duty and local import taxes etc. The price here not

includes the destination fee in buyer's side.

2.Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after placing the

order

3.For some sepcial countries, like Brazil, Mexico, E-packet and China Post delivery time may

be around 20-90 days




Remarks: Considering that it is not easy to clear customs, so the box will not be sent, please be aware!


Remarks: Considering that it is not easy to clear customs, so the box will not be sent, please be aware!


Remarks: Considering that it is not easy to clear customs, so the box will not be sent, please be aware!

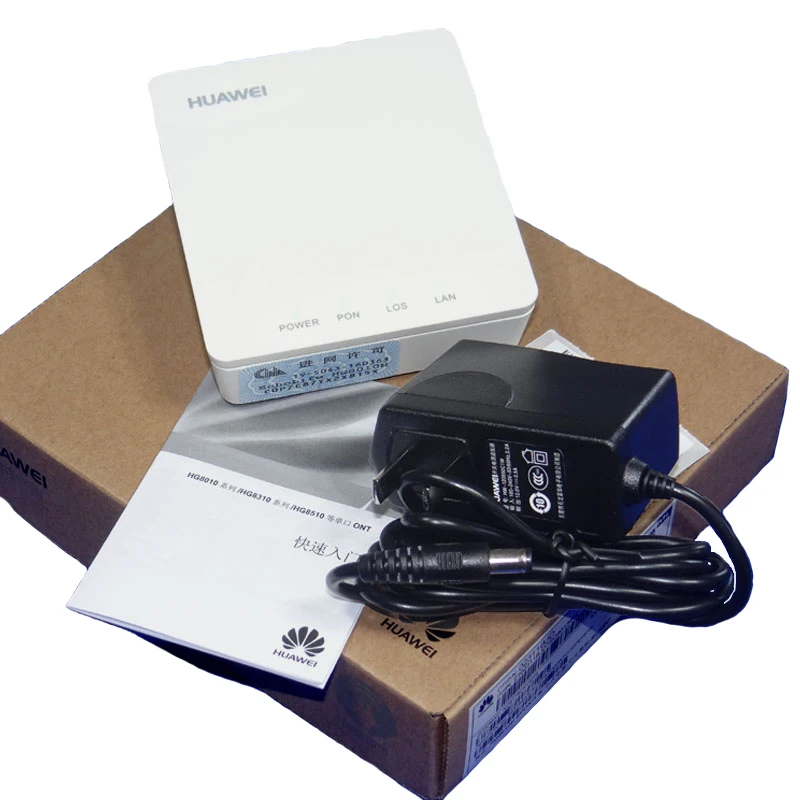

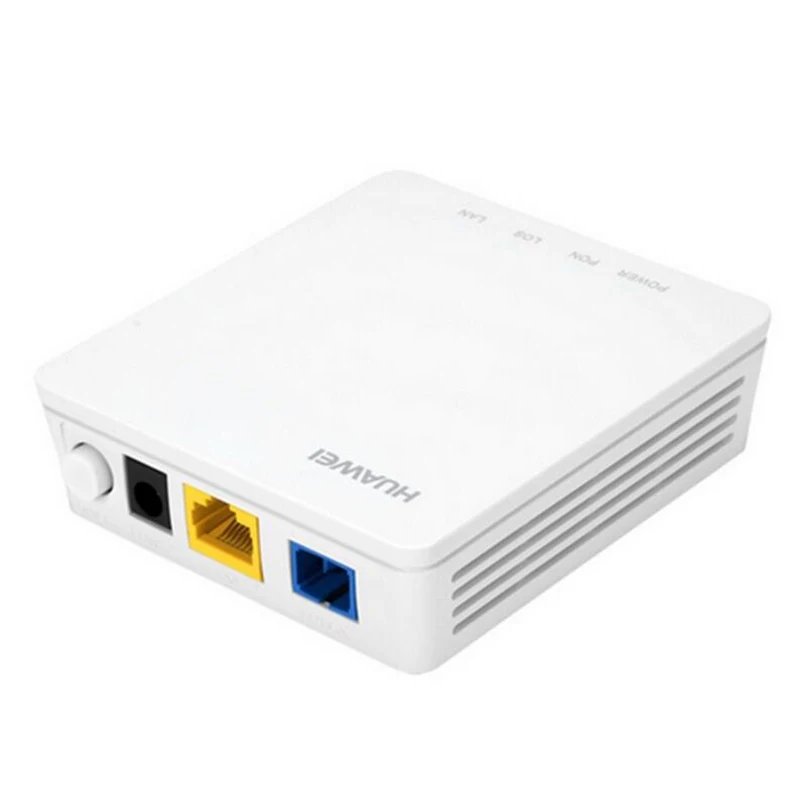

Huawei HG8010H 1G EPON EPON ONU

The EchoLife HG8010H is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the EPON technology, ultra-broadband access is provided for home and SOHO users. The HG8010H provides one GE/FE auto-adapting Ethernet port. The HG8010 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
  • Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.

  • Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

  • Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

  • High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.

  • IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.


1.EPON features

Class B+ optical module.

Security authentication mode: SN, password or SN+password.

Upstream/downstream FEC.

GEM port mapping mode: VLAN, 802.1p, VLAN+ 802.1p, IPToS, physical port.


2.Multicast features

IGMP V2&V3 snooping.


3. Ethernet features

VLAN filtering and VLAN transparent transmission.

VLAN N:1 aggregation and VLAN 1:1 translation.


4.Maintenance features

Local management using Web and remote management using OMCI

Optical power monitoring.

802.1ag Ethernet OAM.

5.Reliability features

Type B protection and rogue ONT detection.


6.Green engery-saving features

Dynamic power consumption adjustment.


Device Parameters

Dimensions (H x W x D)

(115 x 94 x 27)mm (V300R015C00 and earlier)

(82 x 90 x 27)mm (V300R015C10)

Weight

about 500g

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100-240 V AC, 50-60 Hz

System power supply

11-14 V DC, 1A

Static power consumption

3W

Maximum power consumption

3.5W

Ports

1GE

Indicators

POWER/PON/LOS/LAN


Interface Parameters

Ethernet Port

• Ethernet port-based VLAN tags and tag removal

• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

• QinQ VLAN

• Limit on the number of learned MAC addresses

• MAC address learning

• Transparent transmission of IPv6 packets at Layer 2

EPON Port

• Class B+

• Receiver sensitivity: -27dBm

• Wavelengths: US 1310nm, DS 1490nm

• WBF

• Flexible mapping between GEM Port and TCONT

• GPON: consistent with the SN or password authentication defined in G.984.3

• Bi-directional FEC

• SR-DBA and NSR-DBA

Product Function

Smart O&M

• Variable-length OMCI messages

• Active/Passive rogue ONT detection and isolation

• PPPoE/DHCP simulation testing

QoS

• Ethernet port rate limitation

• 802.1p priority

• SP/WRR/SP+WRR

• Broadcast packet rate limitation

• Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Security

• MAC addresses

Common

O&M

• OMCI/Web UI

• Dual-system software backup and rollback

• 802.1ag Ethernet OAM

• Optical link measurement and diagnosis

• Loopback check

Multicast

• IGMP v2/v3 snooping

• MLD v1/v2 snooping

• Fast leave

• VLAN tag translation, transparent transmission, and removal for downstream multicast packets

• IGMP/MLD protocol packet rate limitation

Power Saving

• Indicator power saving

• Power consumption reduction of idle componets in power-saving state

• COCV4









We work 6 Days a week at 7:00 – 23:00 from Monday – Sunday Beijing Time.

Thanks for your business!
